3-In-1 FNIRSI 2C23T Digital Oscilloscope Multimeter Function Signal Generator

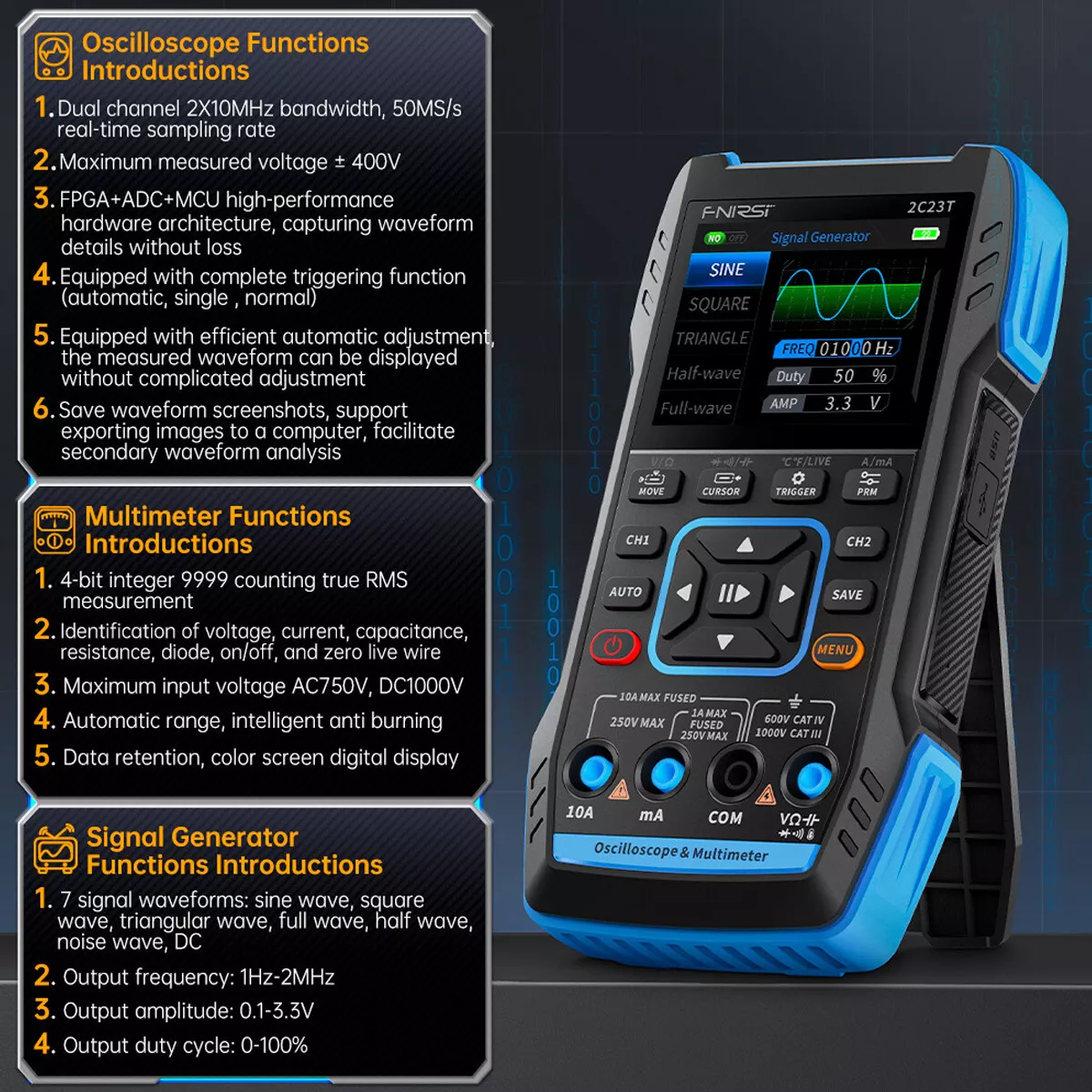

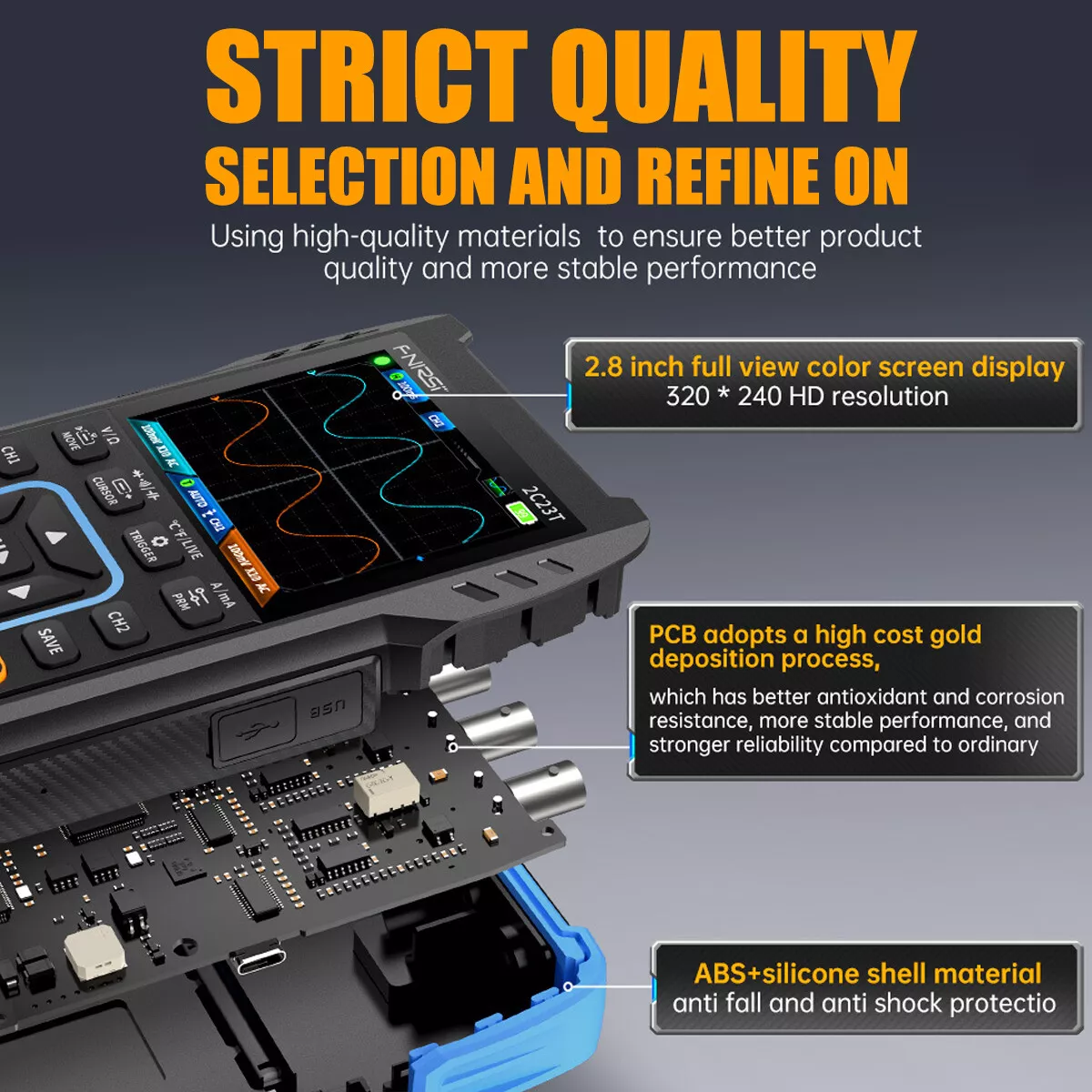

Product DescriptionFeatures： 【Oscilloscope Mode】2 channel handheld oscilloscope, 10MHz bandwidth, real-time sampling rate 50MSa/s, record depth 32kb, maximum measurement voltage ±400V, automatic measurement function, trigger function auto/normal/single, 200mv/div-10v/div vertical sensitivity, support waveform image storage and export. 【Multimeter Mode】4-digit 10000 Counts. AC Voltage: 0-750V, DC Voltage: 0-999.9V, DC/AC Current: 0-9.999A, Resistance: 0-99.99MΩ, Capacitance: 0-99.99mF, Temperature: -55°C-1300°C/-67~2372℉, Diode, Continuity Measurement. An ideal multi-function meter for professionals, factories, schools, hobbyists or home use. 【Signal Generator】The maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC. 【Excellent Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8-inch 320*240 resolution HD LCD display, built-in 3000mAh rechargeable Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A power adapter charging. 【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen. Product parameters: Material: Plastic Silicone Alloy Product size: 167 * 89 * 35MM Screen: 2.8-inch true color screen Screen resolution: 320 * 240 Charging input: TYPE-C (5V/1A) Battery: 3000mAh lithium battery Main functions: Oscilloscope, signal generator, digital multimeter Three major functional parameters: Oscilloscope Channel：Dual channel Sample rate：50M Analog bandwidth：10M(dual channel independent 10M) Storage depth：32kb Impedance：1MΩ Time Base Range：50ns-10s Vertical sensitivity：20mV/div-10V/div（X1） Maximum measured voltage：±400V Trigger mode：AUTO/Normal/Single Trigger type：Rising edge, Falling edge Display mode：YT/Scroll Coupling method：AC/DC Save waveform screenshot：Yes Export waveform images：Yes Multimeter DC Voltage：9.999V~999.9V AC voltage：9.999V~750.0V DC current：9999uA~9.999A AC current：9999uA~9.999A Resistance：999.9Ω~99.99MΩ Capacitance：9.999nF 99.99mF Temperature：(-55~1300℃)/(-67~2372℉) Diode：Yes Continuity test：Yes Live line detection：Yes Function Signal Generator Channel：Single channel Frequency：1Hz-2MHz Amplitude：0.1-3.3V Packing list: 2C23T *1 P6100 Probe *2 Crocodile clip probe *1 Multimeter Probe *1 Charging cable *1 User Manual *1 Packaging box *1 Payment Shipping Terms s Contact Us We accept PayPal only. If buyer want to delay the payment because of financial problem, please contact me by the message within 3 days Payment via PayPal (PayPal accepts all major credits/debit cards and eCheque) ECheque payment will take 3-10 days to get clear, thus DELAYing the shipment.Handling time: 1 business day (Orders are not processed on weekends & holidays) Tracking information will be sent once item is shipped. Local pick-up is unavailable at the moment. For international shipping and shipping to Guam, Hawaii and Alaska, Please contact us before placing the order. Item is shipped to address. Leaving correct address can minimize delay. For any issues with Defects, , Item Exchange request, please contact us first and send us a message first before opening any type of case or request. We devote ourselves making EVERY CUSTOMER in 100% Satisfactory and resolve any problem. We highly value and appreciate your business. Thank you. No s will be accepted without an RMA number. Please contact us for the RMA number. is acceptable within 30 days of delivery. for replacement or money back is optional. ed items must be in the brand new, unaltered and resalable condition. Seller is not responsible for any labor cost, expense in a dealer store, or damage due to wrong installation. is accepted within

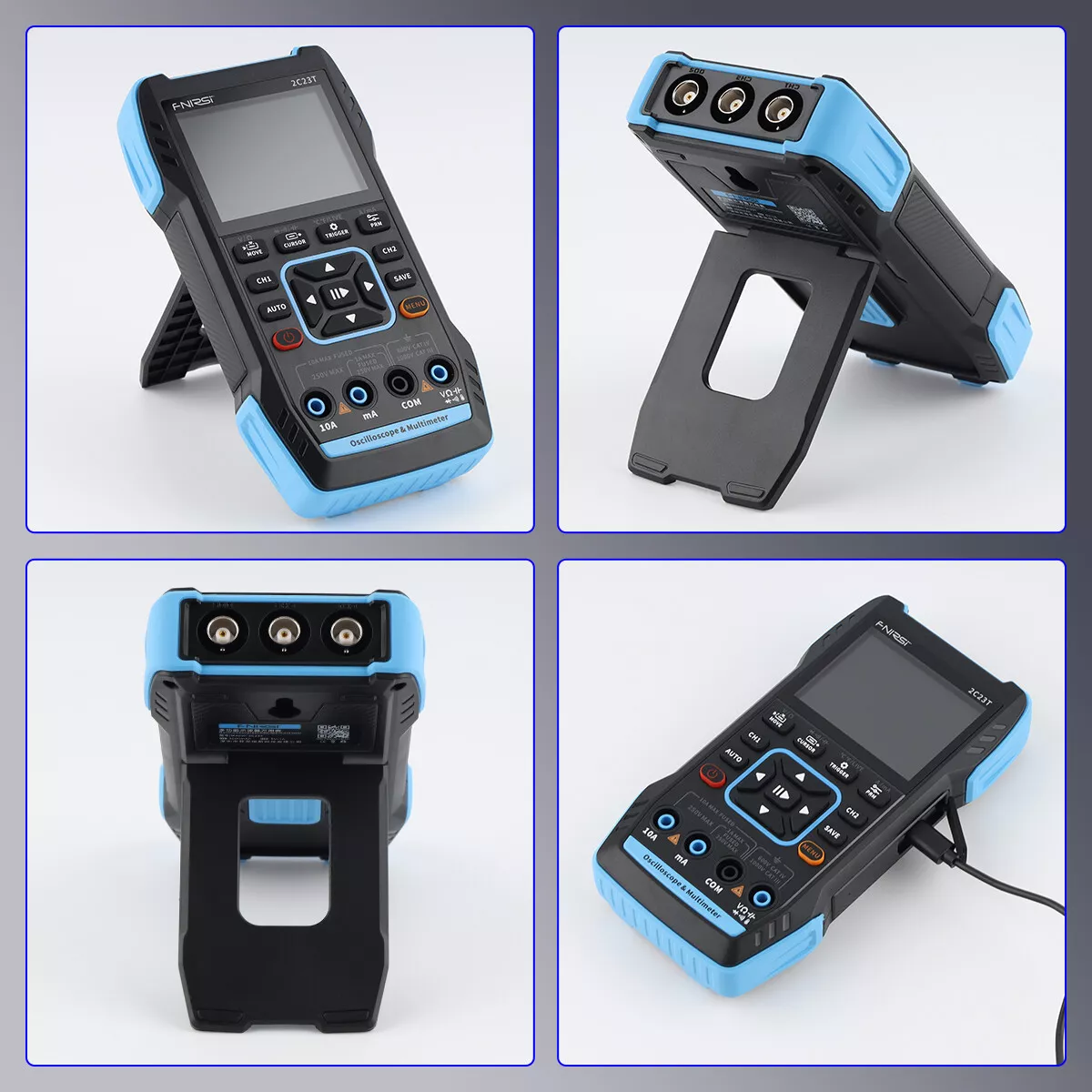

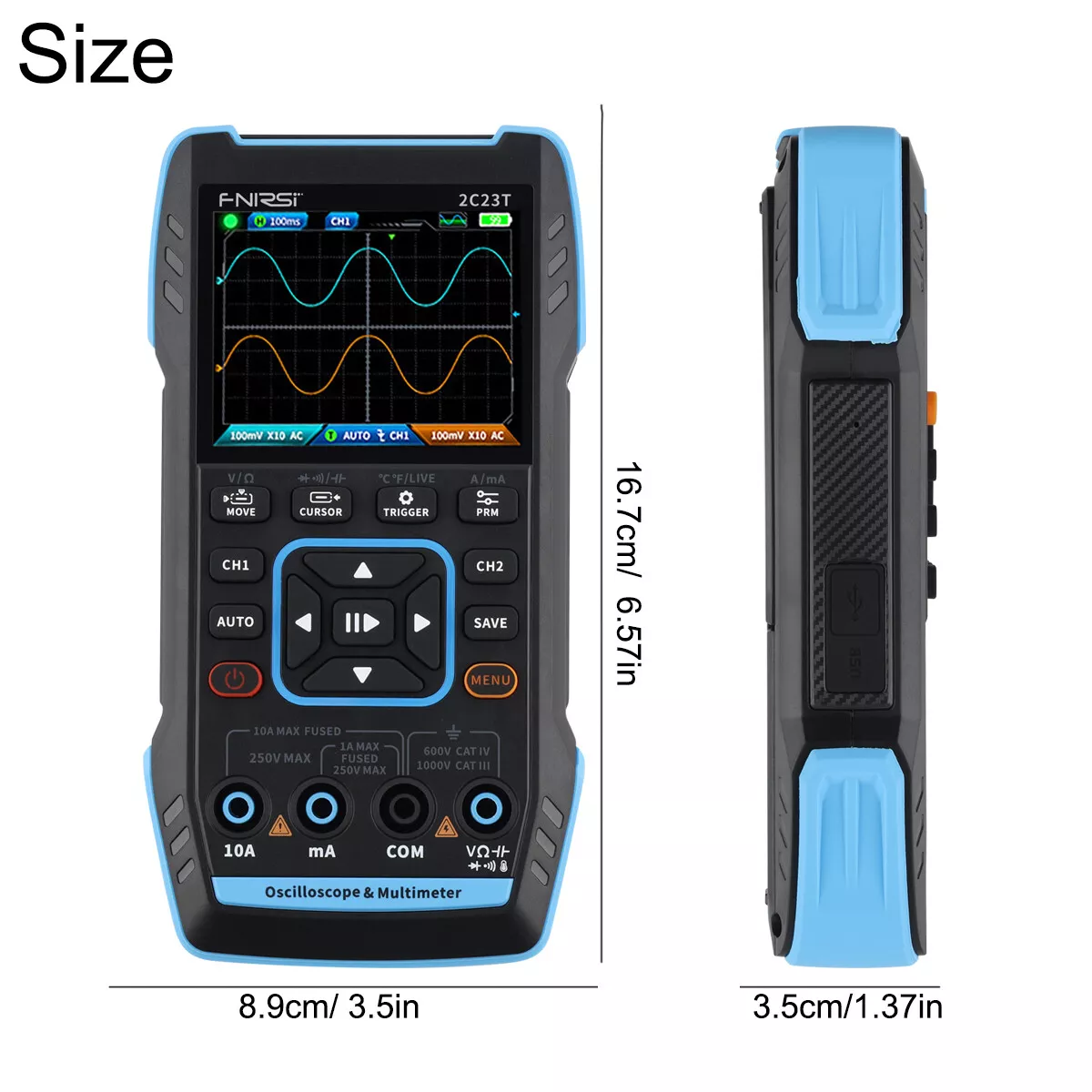

• SMALL AND PORTABLE

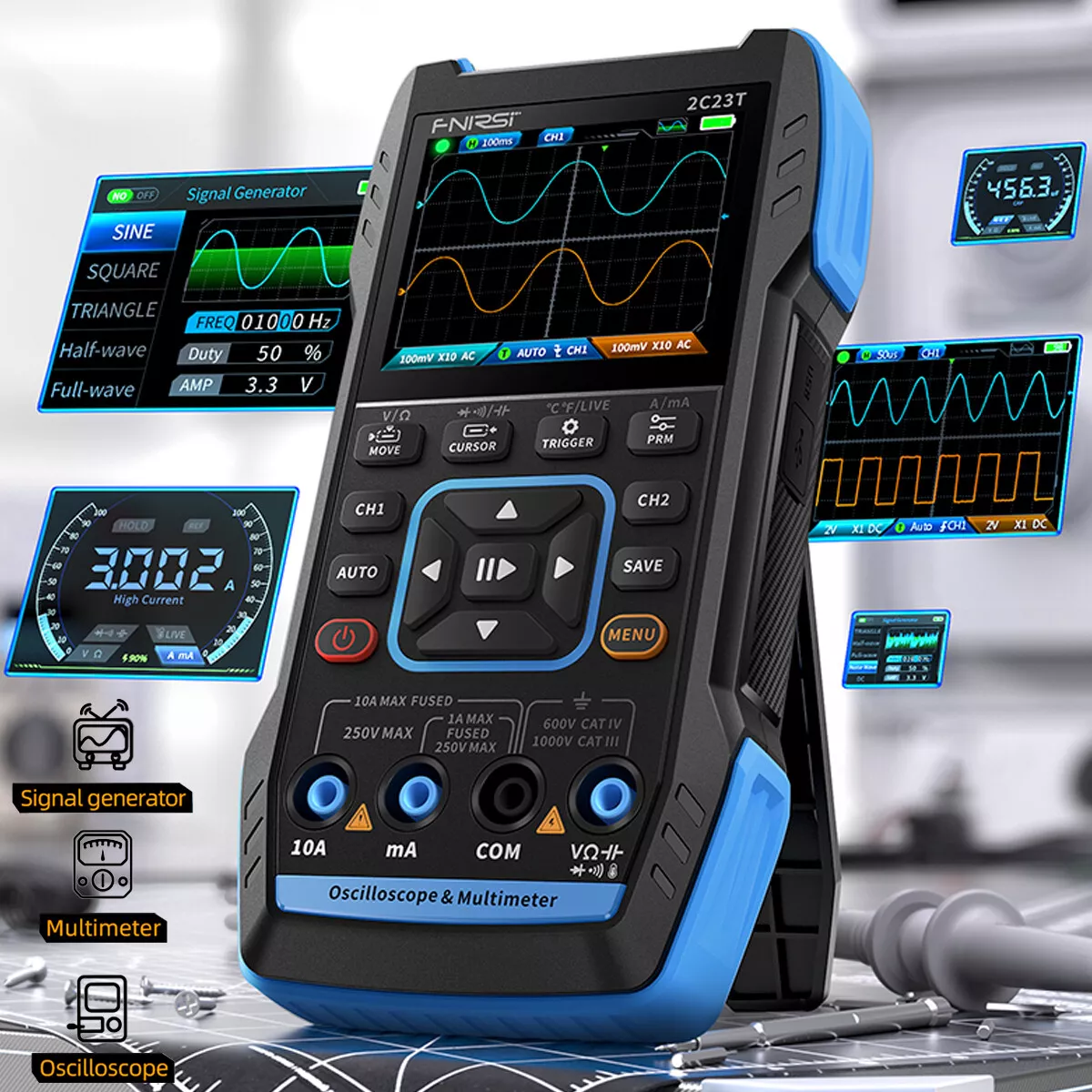

• MULTI-FUNCTIONAL UPGRADE
• WIDE COMPATIBILITY
