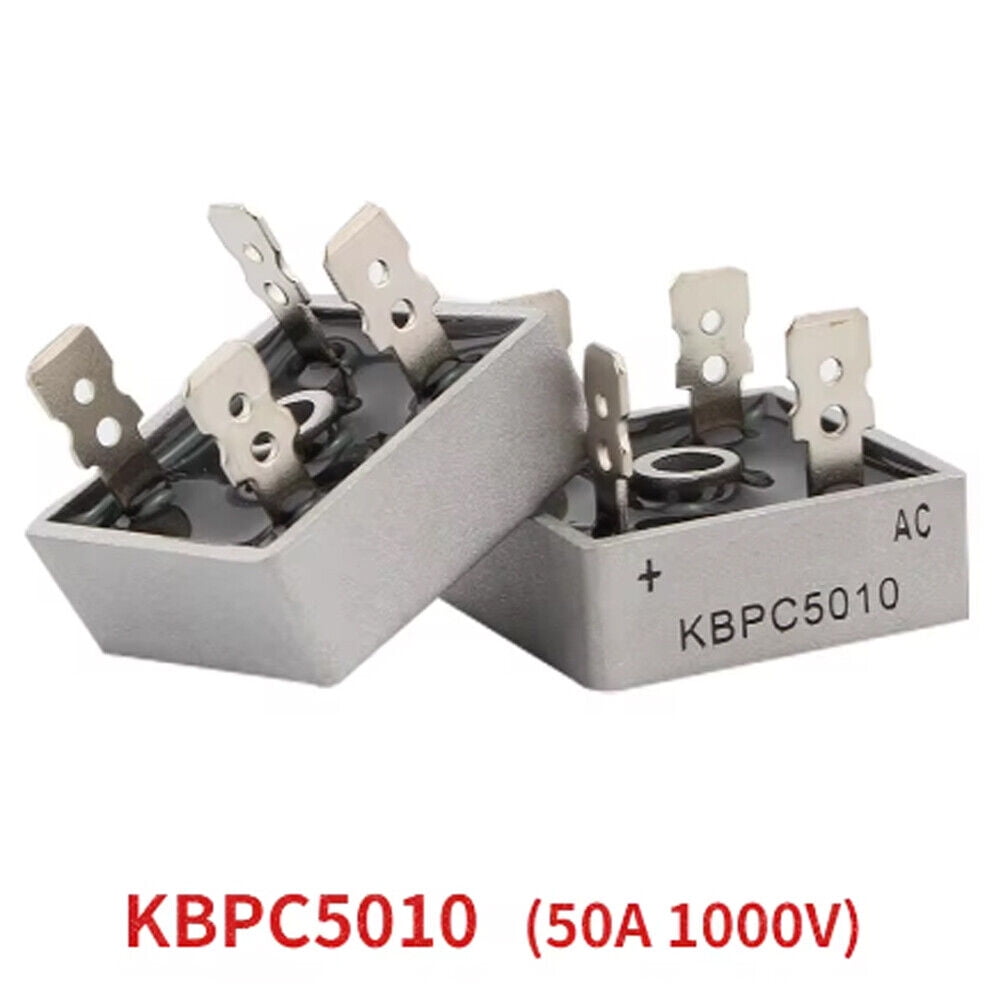

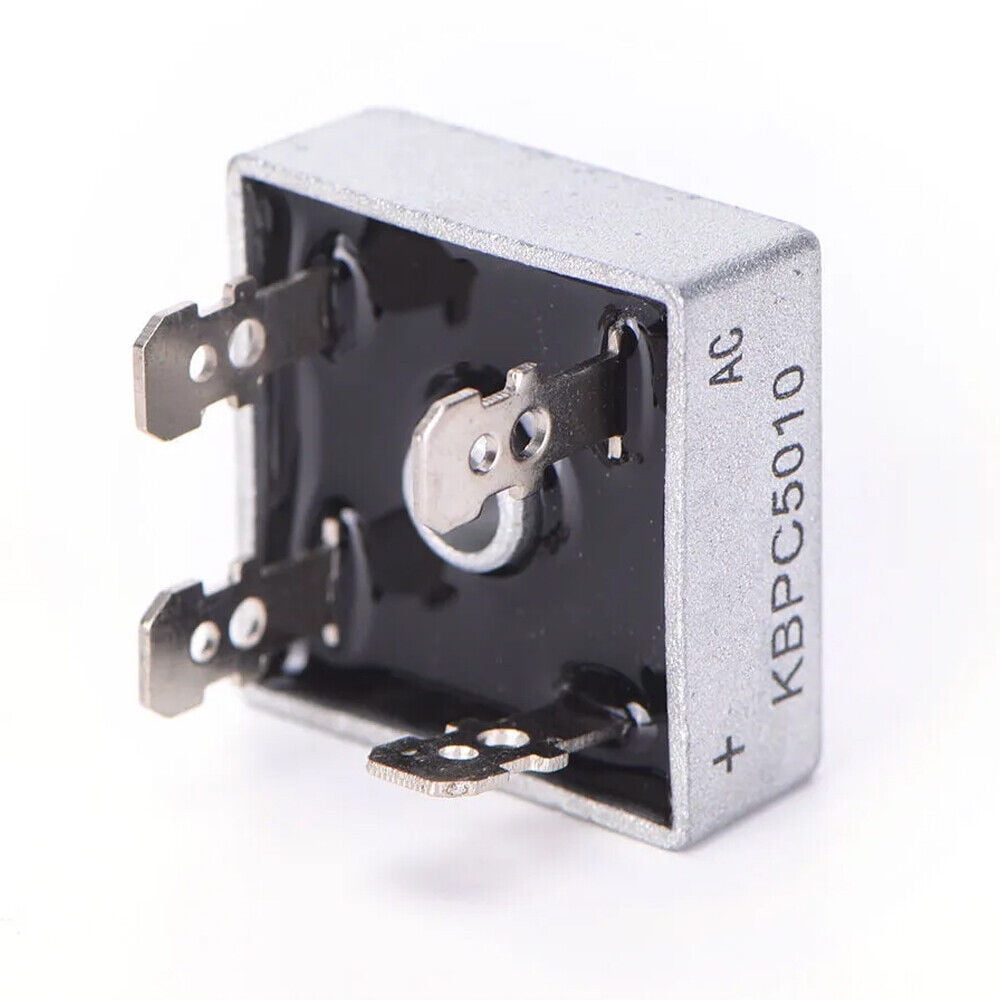

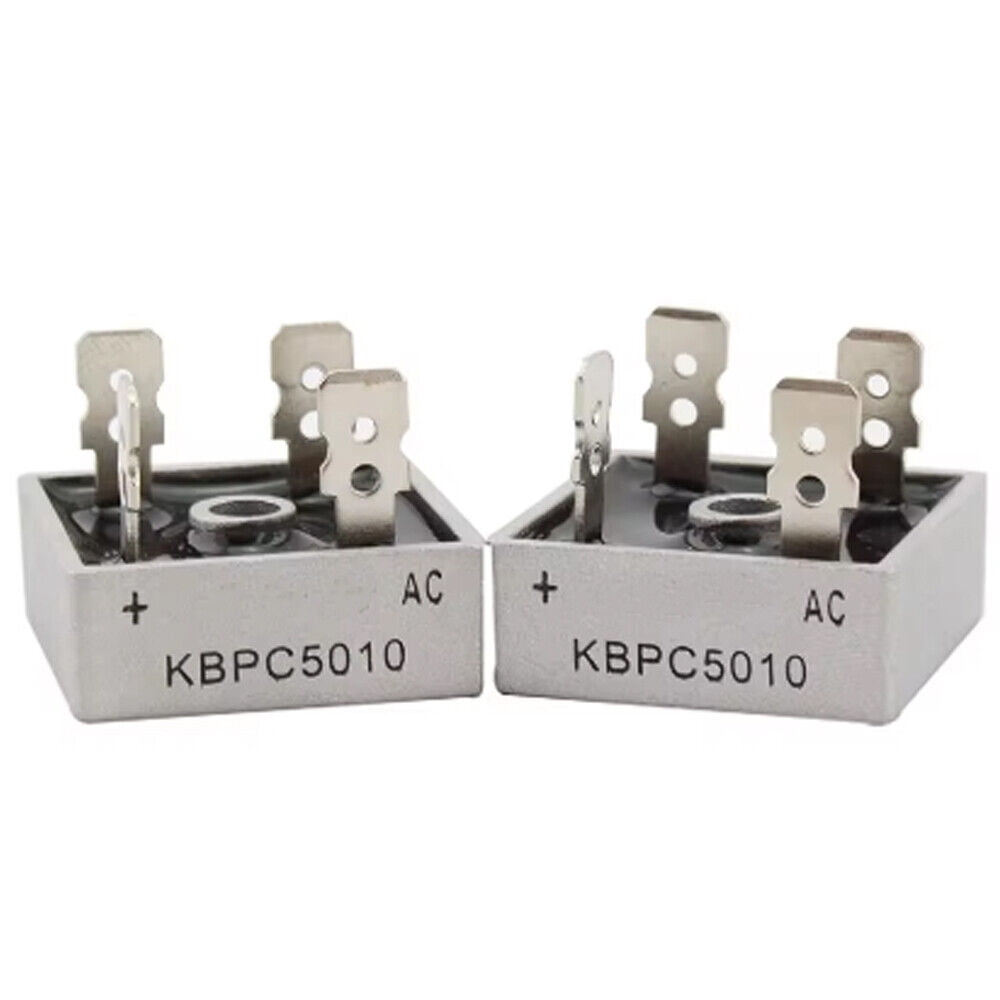

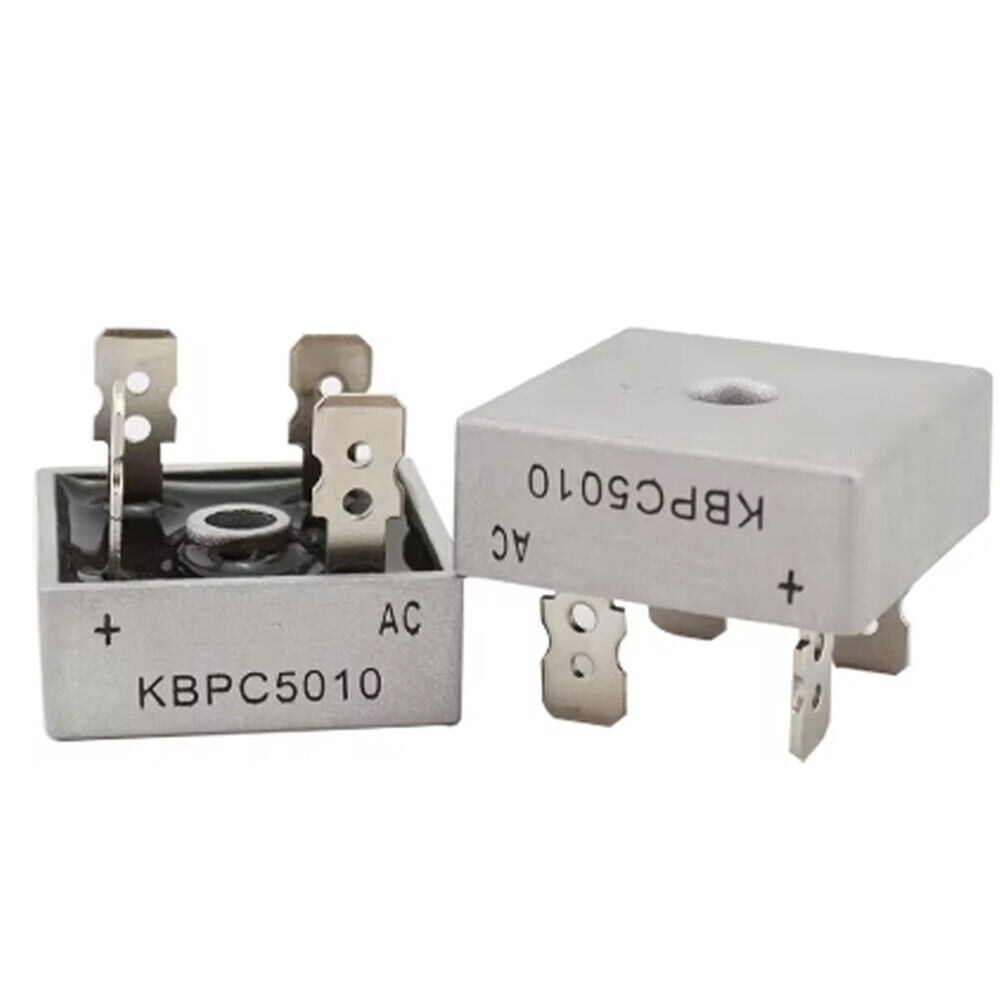

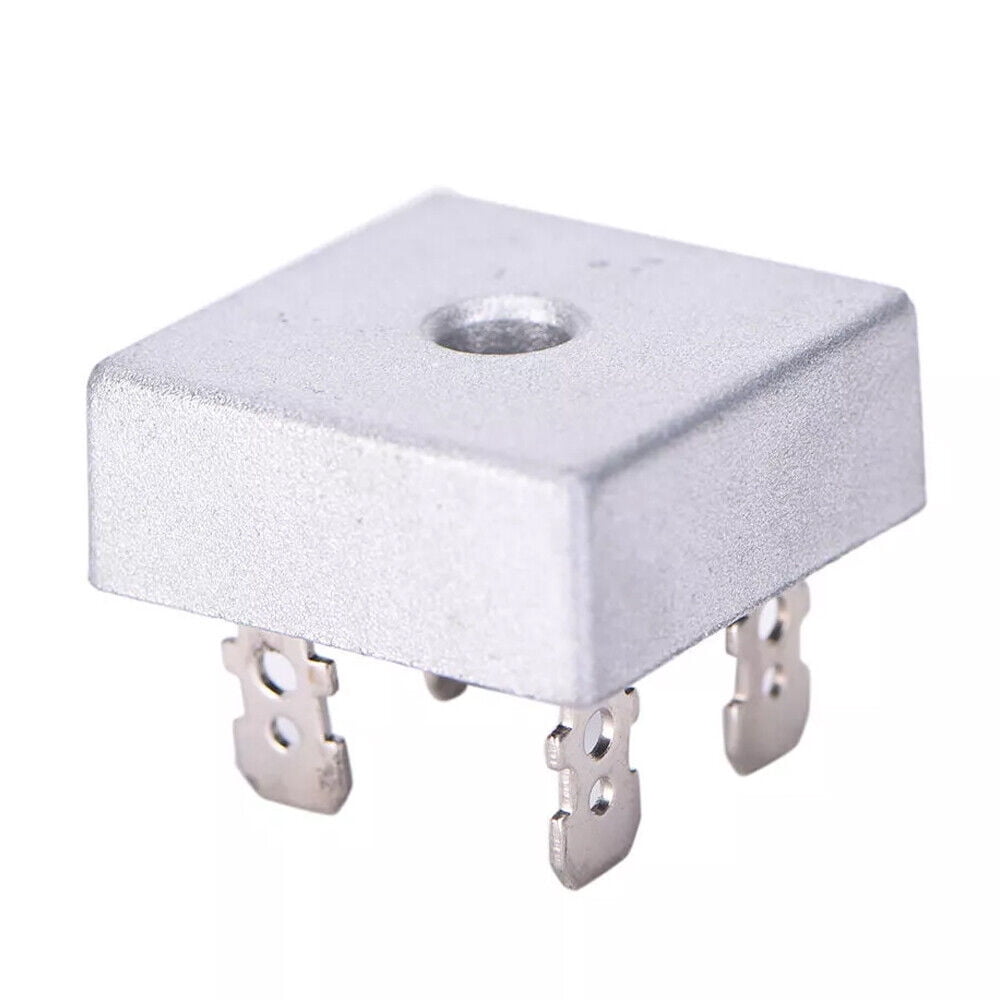

20Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010

<p>KBPC5010 Features:</p> <ul> <li>Surge overload ratings to 400 amperes<br><br><br><br></li> <li>Electrically isolated metal case for maximum heat dissipation<br><br><br><br></li> <li>Case to terminal isolation voltage 2500V<br><br><br><br></li> </ul> <p><br>Electrical Specifications:<br><br><br><br></p> <ul> <li>Maximum repetitive peak reverse voltage (VRRM): 1000V<br><br><br><br></li> <li>Maximum RMS bridge input voltage (VRMS): 700V<br><br><br><br></li> <li>Maximum DC blocking voltage (VDC): 1000V<br><br><br><br></li> <li>Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A<br><br><br><br></li> <li>Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A<br><br><br><br></li> <li>Typical thermal resistance per element (ReJA): 2.5 degrees C/W<br><br><br><br></li> <li>Operating junction and storage temperature range: -55 to +150 C<br><br><br><br></li> <li>Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V<br><br><br><br></li> <li>Maximum DC reverse current at rated TA=25 C (IR): 10uA<br><br><br><br></li> <li>DC blocking voltage per element TA=125 C (IR): 500uA<br><br><br><br></li> </ul> <p>Mechanical Data:</p> <ul> <li>Case: Metal case<br><br><br><br></li> <li>Terminals: Plated .25"(6.35mm) <br><br><br><br></li> <li>Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency<br><br><br><br></li> <li>Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting<br><br><br><br></li> <li>Mounting Torque: 20 in-lb max.<br><br><br><br></li> </ul> <p><br><br>Package includes:<br><br>20x (20pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier<br><br><br></p>
